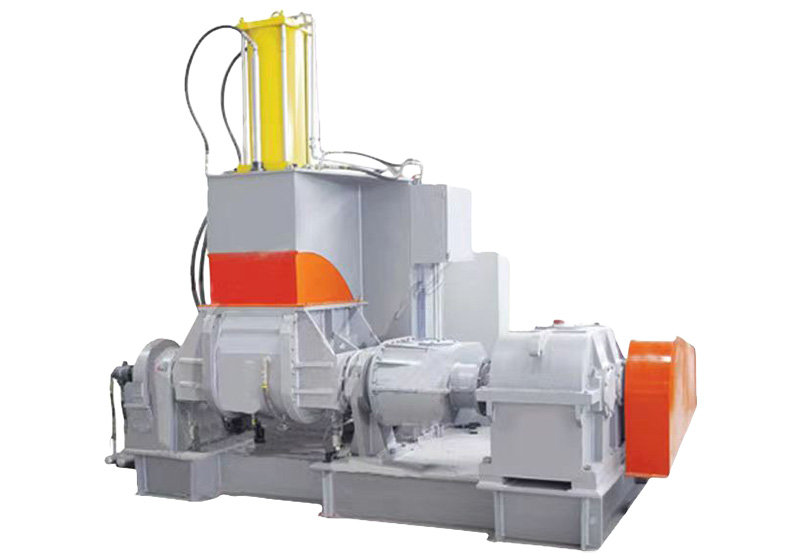

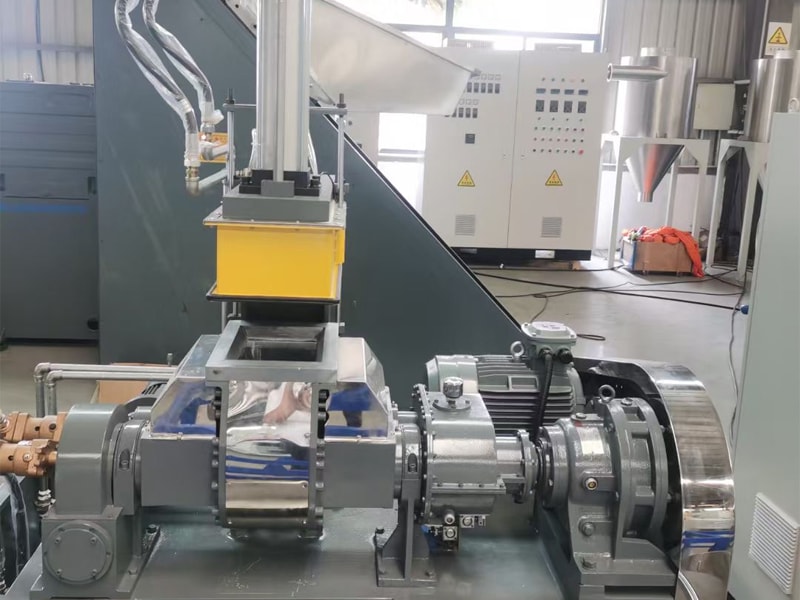

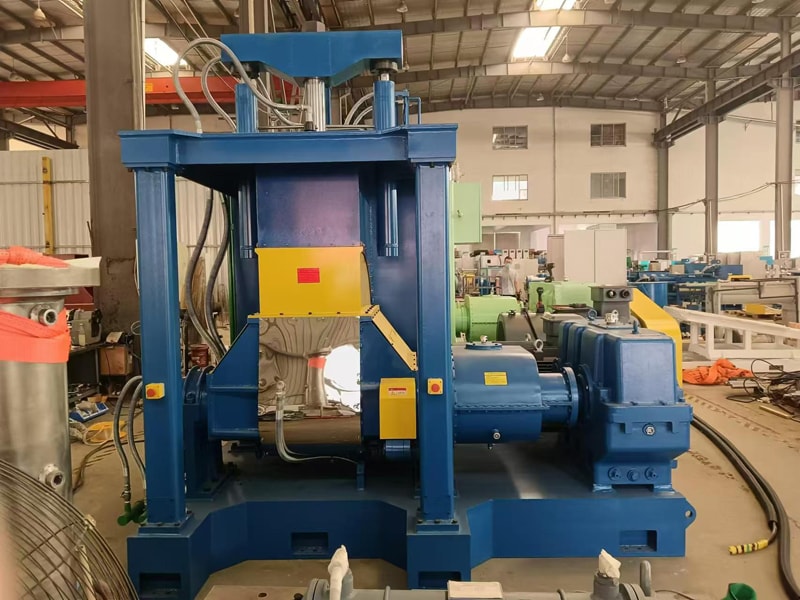

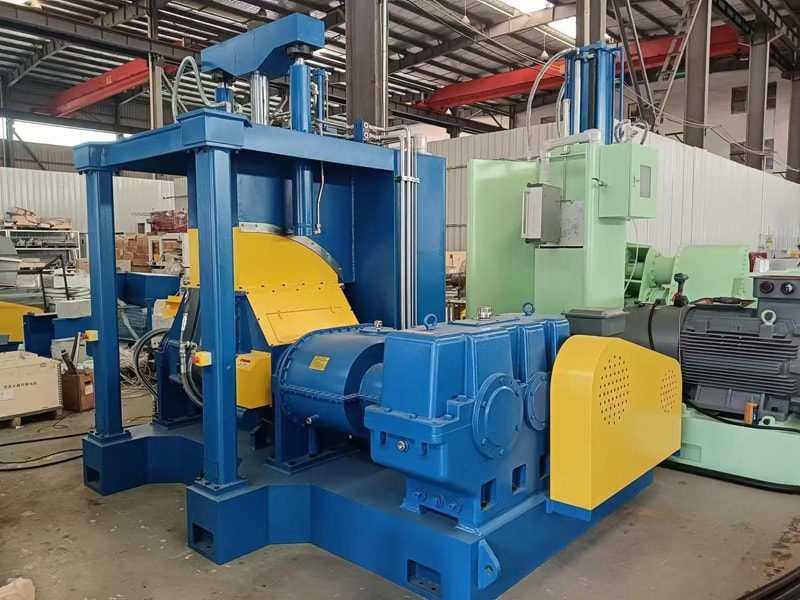

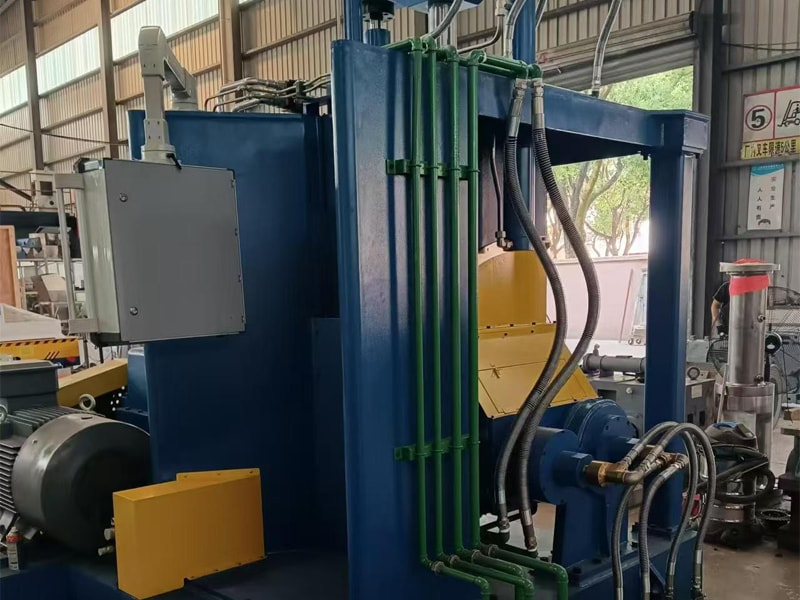

    Dispersion Kneader Mixer
    Request a Quote

    Dispersion Kneader Mixer

    Our dispersion kneader mixer is built for use in most kneading and mixing applications for rubber and plastic, particularly suitable for the manufacture of rubber compounds. A temperature and time control system is configured in this rubber mixer to ensure smooth and reliable operation. Besides, robust structure of mixing tank makes it durable for stable running even in extreme working environments.

    Features
    • Dispersion kneader mixer is equipped with a fully automatic temperature and time control system, ensuring precise operation. This rubber mixer is simple and easy to use, and can achieve the best dispersing effect during mixing.
    • The mixing tank is tiltable, and the leakage prevention of the stirring shaft adopts a Korean mechanical shaft seal, making it easy and convenient for cleaning and color changing.
    • The pressurized sealing mixing tank not only ensures the quality of the mixture but also prevents environmental pollution.
    • The mixing tank is made of high-quality alloy steel, with a wear-resistant surface that is hard chrome plated for excellent wear resistance.
    • The electrical control configuration can be designed according to customer requirements.
    Specifications
    Model 55L 75L 110L 150L
    Mixing Capacity (liters) 55L 75L 110L 150L
    Air Pressure 0.6-0.8Mpa(6-8kg/cm)
    Main Motor 75kW6PAC 110kW 6PAC 160kW 6PAC 220kW 6PAC
    Tilting Motor 3.0kW 4.0kW 7.5kW 11kW
    Air Cylinder Diameter 300mm 350mm 420mm 550mm
    Tilting Angle 140° 140° 140° 140°
    Mixing Speed (before/after) 32/25RPM (optional)
    Direction of Material Feeding front or back
    Temperature Control Accuracy ±2℃ ±2℃ ±2℃ ±2℃
    Weight 8500kg 10800kg 15000kg 20000kg
    Overall Dimensions (H×W×L) 3250×2300×3350mm 3760×2800×3280mm 4300×3000×3400mm 4600×3250×4200mm
    More Products

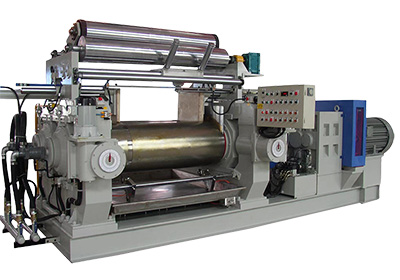

    Horizontal Two-Roll Open Mill
