    Rubber Precision Preformer

    Rubber extruder for making rubber preforms, blanks, strips or shaped rubber profiles

    Rubber Precision Preformer
    Request a Quote

    Our rubber precision preformer achieves high accuracy in producing rubber blanks. The standout feature of our preformer lies in the capability to extrude an array of medium to high-hardness rubber forms, including rings, bars, intricate three-dimensional shapes, and complex profiles.

    Our rubber precision preformer is your companion across diverse industries, catering to the production of rubber components such as miscellaneous rubber parts, O-rings, valve seals, oil seals, golf accessories, tennis equipment, automotive components, and footwear products. Integrating vacuuming, filtering, extrusion, cutting, weighing, and counting functions, our rubber extruder is a multi-faceted tool designed to meet a wide range of requirements.

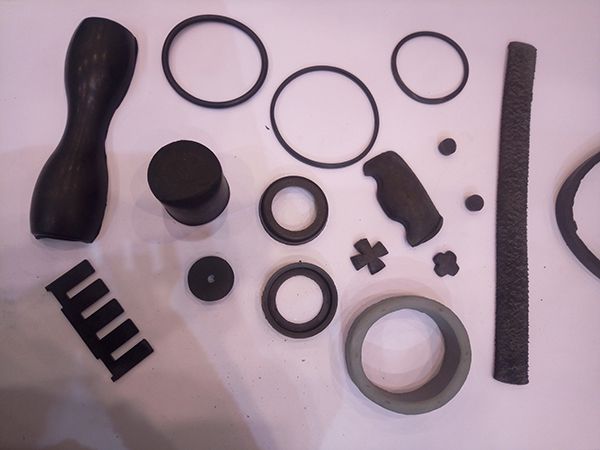

    Samples of Rubber Precision Preformers

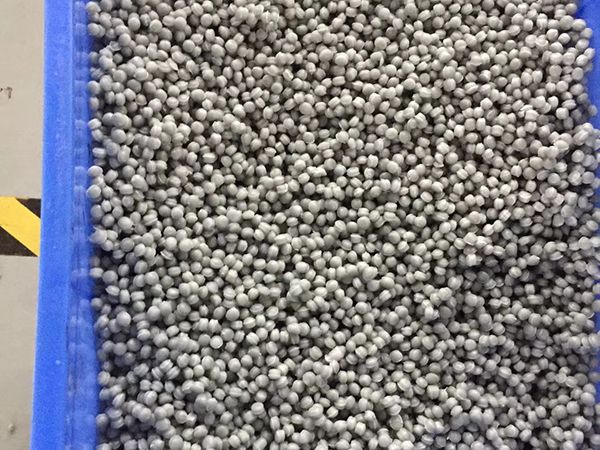

    • Rubber pelletsRubber pellets

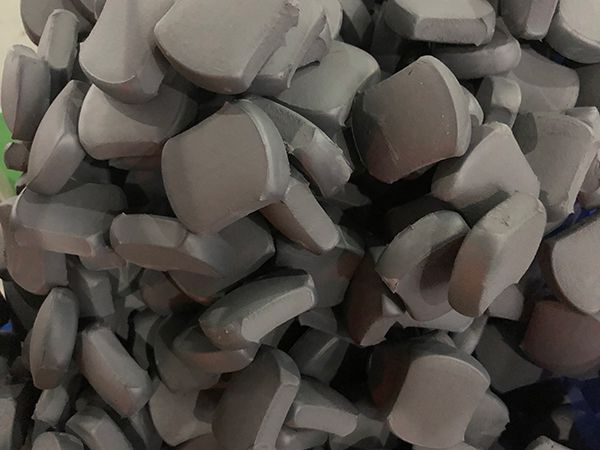

    • Rubber blanksRubber blanks

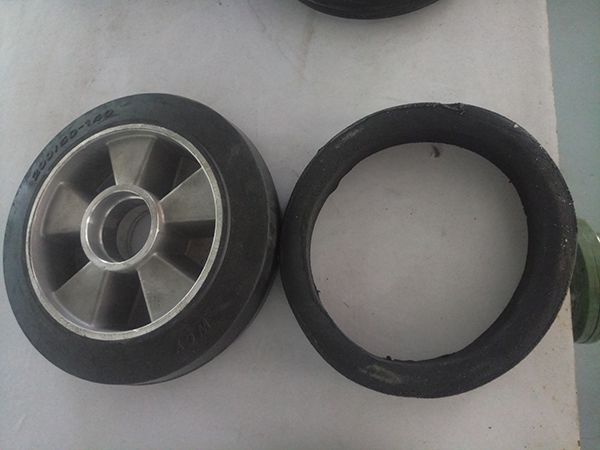

    • Rubber caster wheelsRubber caster wheels
    • Custom rubber seals & gasketsCustom rubber seals & gaskets
    • Specifications
    • Features
    • Delving into the Details

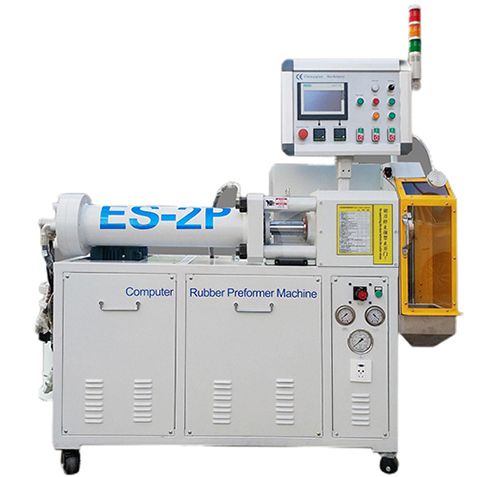

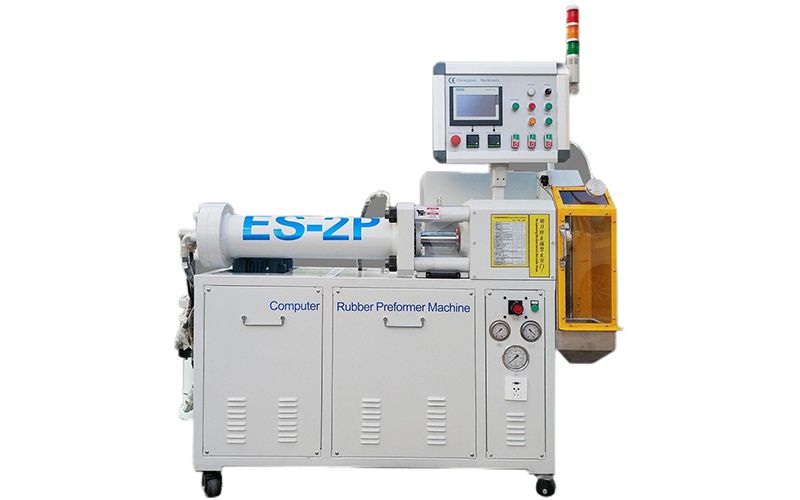

    ES-2P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit
    Batch Size L 2
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 100
    Max. Output kg/hr 50
    Max. Die Diameter mm 60
    Total Power kW 10.5
    Oil Reservoir L 50
    Heater Power kW 3.5
    Weight kg 400
    Dimensions (L*W*H) mm 1900*683*1750

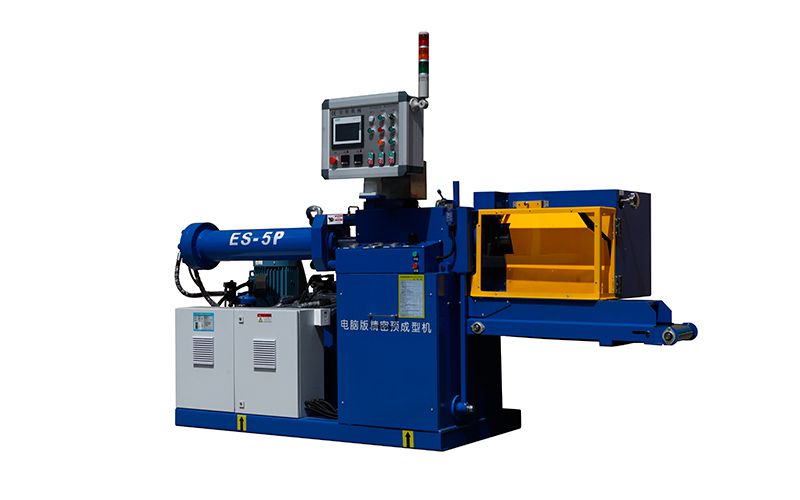

    ES-5P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit
    Batch Size L 5
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 100
    Max. Output kg/hr 75
    Max. Die Diameter mm 76
    Total Power kW 13
    Oil Reservoir L 60
    Heater Power kW 15
    Weight kg 880
    Dimensions (L*W*H) mm 2900*920*1700

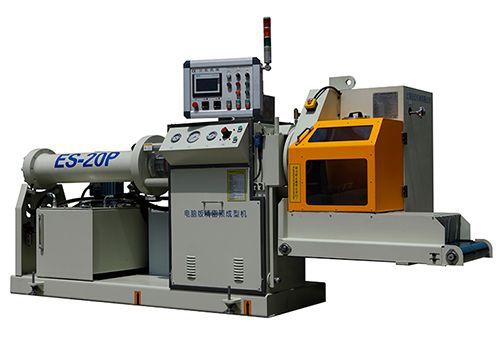

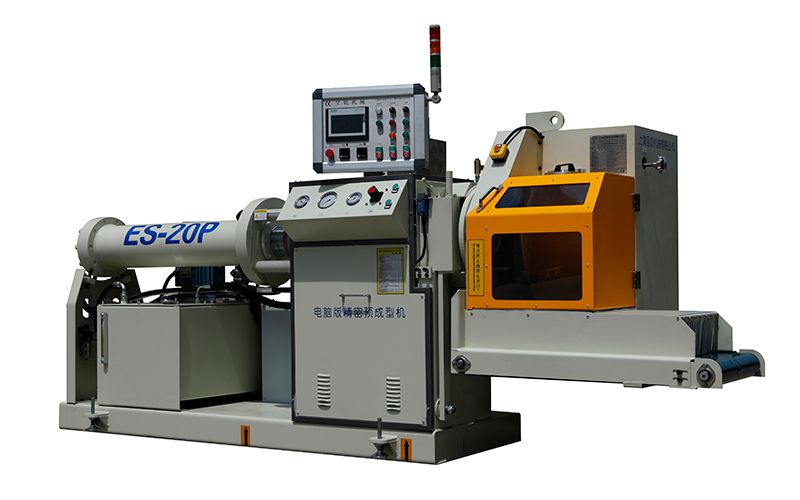

    ES-20P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit
    Batch Size L 20
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 200
    Max. Output kg/hr 270
    Max. Die Diameter mm 127
    Total Power kW 16
    Oil Reservoir L 200
    Heater Power kW 0.6-1.0
    Water Supply (at 25℃) L/min 20
    Weight kg 3200
    Dimensions (L*W*H) mm 3800*1100*1750

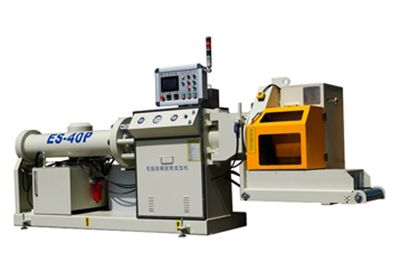

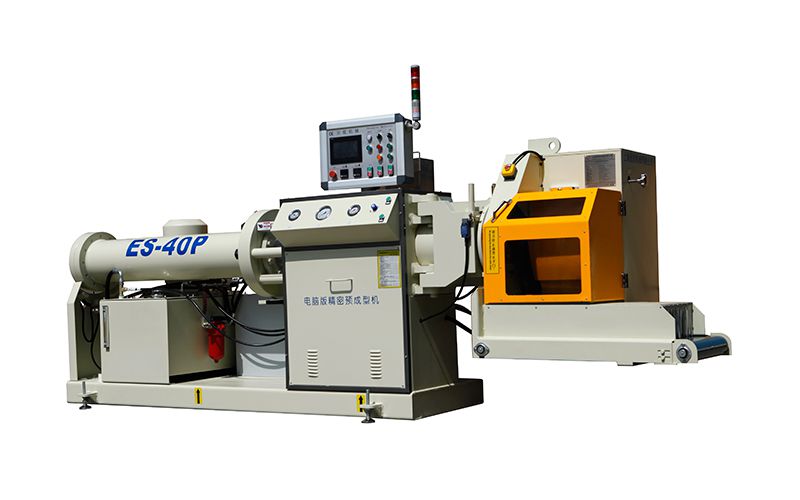

    ES-40P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit ES-40P
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 250
    Max. Output kg/hr 550
    Max. Die Diameter mm 190
    Total Power kW 26
    Oil Reservoir L 200
    Air Supply mpa 0.6-1.0
    Water Supply (at 25℃) L/min 35L
    Weight kg 4200
    Dimensions (L*W*H) mm 4800°1100*1750

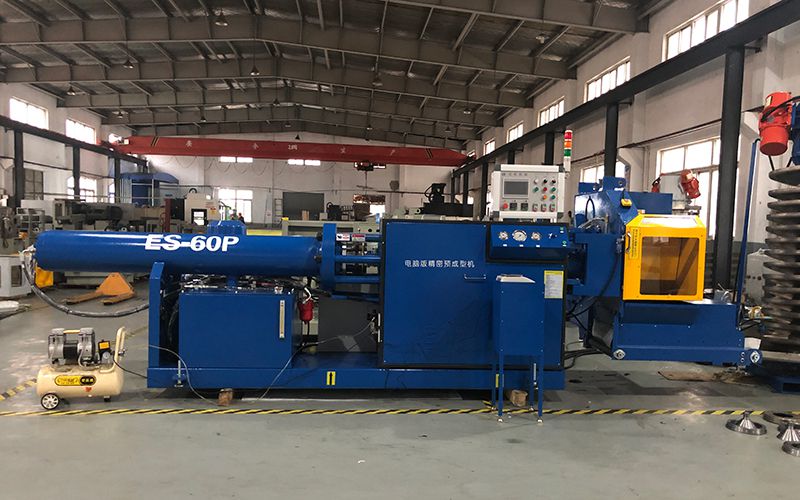

    ES-60P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit ES-60P
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 250
    Max. Output kg/hr 650
    Max. Die Diameter mm 190
    Total Power kW 30
    Oil Reservoir L 200
    Air Supply mpa 0.6-1.0
    Water Supply (at 25℃) L/min 35L
    Weight kg 5000
    Dimensions (L*W*H) mm 5800*1100*1750

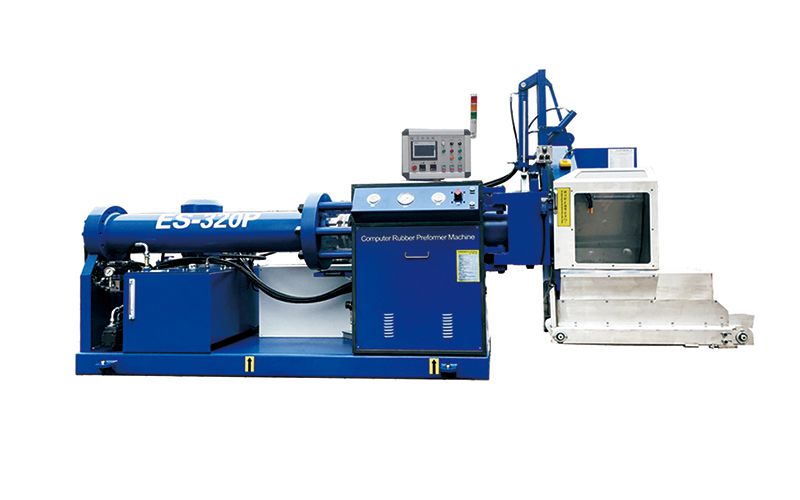

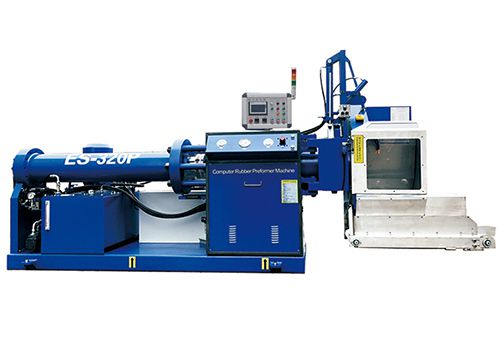

    ES-320P

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit ES-320P
    Batch Size L 60
    Standard Extruding Pressure psi 3000
    Load Position Front
    Barrel Diameter mm 250
    Max. Output kg/hr 550
    Max. Die Diameter mm 300
    Total Power kW 26
    Oil Reservoir L 200
    Air Supply mpa 0.6-1.0
    Water Supply (at 25℃) L/min 35L
    Weight kg 4500
    Dimensions (L*W*H) mm 4900*1100*1750

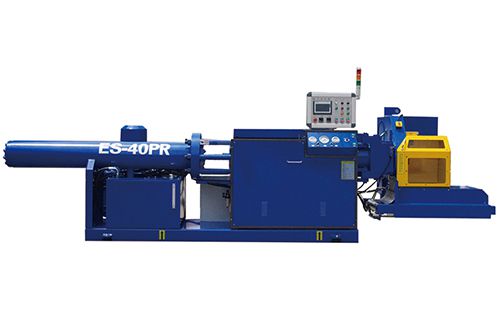

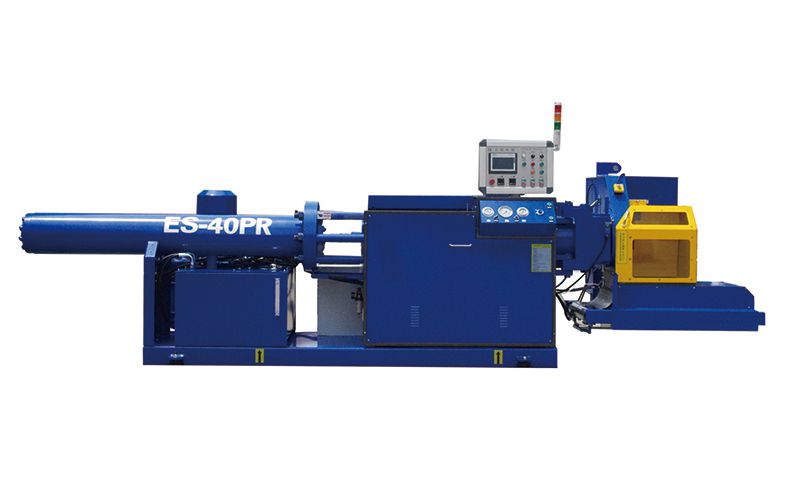

    ES-40PR

    Rubber Precision Preformer

    Rubber Precision Preformer
    Request a Quote
    Item Unit ES-40PR
    Batch Size L 80
    Standard Extruding Pressure psi 3000
    Load Position Front/Rear
    Barrel Diameter mm 250
    Max. Output kg/hr 650
    Max. Die Diameter mm 190
    Total Power kW 26
    Oil Reservoir L 240
    Air Supply mpa 0.6-1.0
    Water Supply (at 25℃) L/min 35
    Weight kg 5500
    Dimensions (L*W*H) mm 5900*1100*1750
    Features
    • Achieve precision weight accuracy of blank up to +1%
    • Operate at a standard pressure of 210 bar (3000 psi)
    • Experience cutter speeds of up to 400 RPM (single blade)
    • Employ AC variable frequency cutter control for precise results
    • Harness hydraulic control system with proportional valves for enhanced control
    • Benefit from electronic scale feedback for automatic blank weight adjustment
    • Attain pinpoint length cutting through pulse cutting technology
    • Store up to 350 product parameters using the flash memory card
    • Choose between manual and automatic operation modes
    • Efficiently manage material flow with the bidirectional conveyor belt
    Additional Features
    • Operating pressure options of 240 bar (3500 psi) or 380 bar (5500 psi)
    • Unique rear-load design
    • Synchronized filtering during preforming process
    • Simple and hassle-free die replacement
    • Extensible center for enhanced flexibility
    • Double cutters can achieve an impressive 800 cuts per minute
    Delving into the Details

    The computerized rubber precision preformer boasts a piston-based structure, comprising of key components such as the extrusion unit, hydraulic system, vacuum system, water circulation system, electric heating system, pneumatic system, cutting system, and electronic control system:

    • Rubber Extrusion Unit: Consists of hydraulic cylinders, barrels, and heads.
    • Hydraulic System: Incorporates high-pressure gear pumps, flow valves, and hydraulic oil control to maintain precise weight control during extrusion.
    • Pneumatic System: Regulates the opening and closing of the extruder head.
    • Vacuum System: Evacuates air and gas trapped in the rubber material and the machine before extrusion, enhancing the quality of products in subsequent processes.
    • Heating System: Utilizes water circulation heating for consistent temperature control, monitored and displayed through a digital temperature controller.
    • Cutting Device: Comprises a frame, motor, and reduction system, with variable frequency control for seamless cutting adjustment.
    • High-Tech Control: Equipped with a high-definition LCD touch screen and PLC for fully automated operation.
    • Feedback System: Utilizes an electronic scale control to automatically adjust cutter speed for achieving desired blank weights.
