Rubber Processing Machinery Manufacturer

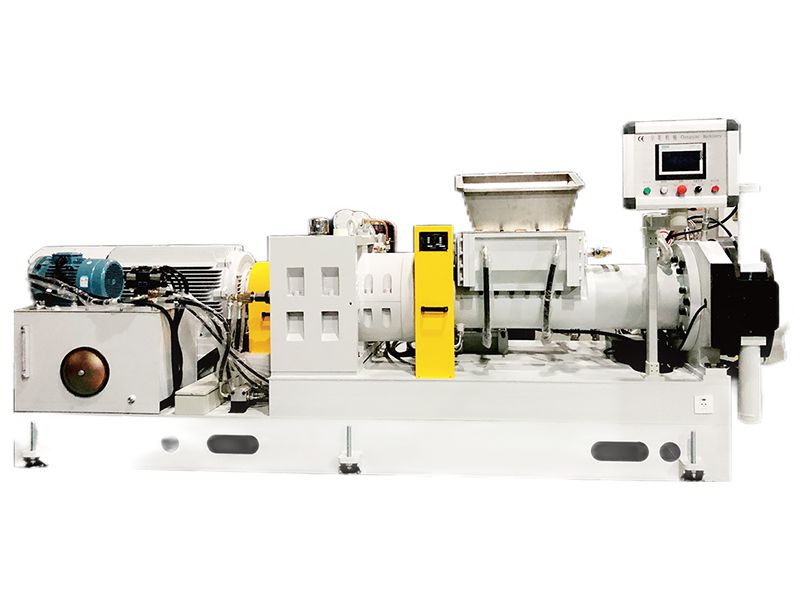

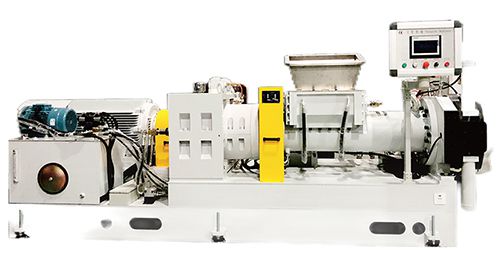

Silicone Strainer
Our silicone strainer is a specialized solution crafted for the filtration needs of silicone production. Designed and manufactured by Chengqian, this silicone strainer is engineered to deliver precise filtration results for different hardness levels and mesh sizes of silicone.
| Model | | |
| Barrel and Screw | ||
| Screw diameter | 200mm | 250mm |
| Length/Diameter Ratio (LD) | 5.5:1 | 5.5:1 |
| Screw Rotating Speed | 0-50r/min | 0-40r/min |
| Gearbox | ||
| Reducer Ratio | 20:1 | 25:1 |
| Feeding Motor Power | 75 kW-6p | 110 kW-6P |
| Forced Feeding System | ||
| Feeding method | Automatic twin screw feeding | Automatic twin screw feeding |
| Electrical Parts | ||
| Main Motor | 75 kW variable | 110 kW variable |
| Feeding Motor | 7.5 kW variable | 11.5 kW variable |
| Machine Size | ||
| Dimension (L*W*H) (mm) | 4400*2300*1800 | 5500 *2500*1900 |
- Automatic Twin Screw Feeding: The machine employs an automatic twin screw feeding mechanism with variable frequency motor control, ensuring rapid and uniform feeding.
- Hydraulic Open-Top Design: The hydraulic open-top design of the strainer head facilitates easy mesh replacement and residue cleaning.
- Cylinder Material Cutting: The machine employs cylinder-based material cutting, enabling precise weight-based material cutting by adjusting the cutting time.
- Efficient Cooling: The barrel features a circulating water cooling system that instantly and reliably cools materials, preventing material decomposition.
- Intelligent Control: The 10-inch large touchscreen display allows direct reading, writing, and modification of parameters such as screw speed, auger rotation, head pressure, and head temperature, facilitating intelligent control.
Silicone processing machinery is suitable for various applications in silicone production, including silicone product manufacturing, silicone seal strip production, silicone seal ring manufacturing, silicone seal gasket production, medical rubber product manufacturing, and more. It can be used for filtering different hardness levels and mesh sizes of silicone materials.
Yes, our silicone strainer is designed to meet the filtration needs of silicone with different hardness levels and mesh sizes. The silicone strainer can accommodate silicone materials of various specifications and characteristics to provide precise filtration results.
