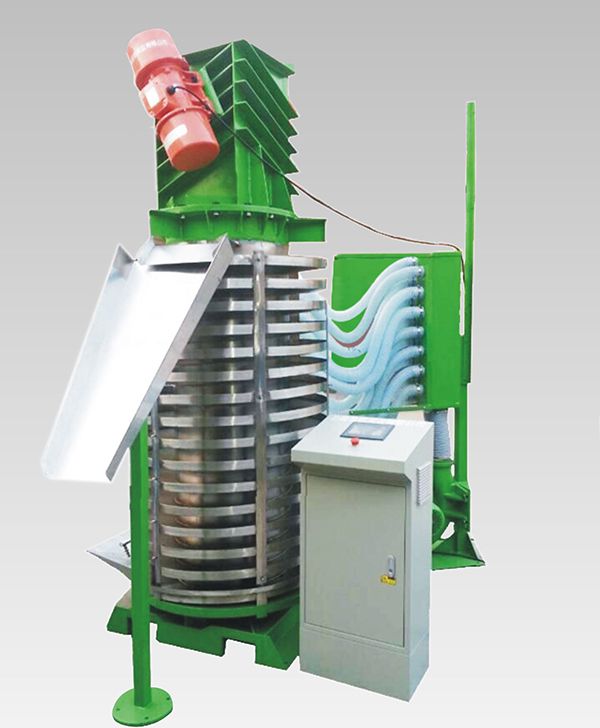

Spiral Cooling Conveyor (Air Cooling)
Introducing our spiral cooling conveyor, an efficient solution that harnesses air-cooling technology to cool rubber components. Our cooling conveyor system enhances product quality and addresses challenges associated with material adhesion and deformation during the cooling process.
Our conveyor incorporates SUS304 stainless steel for the sections that come into contact with rubber components. The entire unit is covered with PC acrylic panels, preventing dust contamination and ensuring product integrity. Additionally, the fully enclosed structure maximizes the air-cooling efficiency.
Specifications
Spiral Cooling Conveyor
| Height of Inlet | 320 mm |
| Conveying Length | 41 m |
| Flight Width | 230 mm |
| Flight Pitch | 100 mm |
| Motor Power | 2*750 W |
| Vibration Speed | 30-60 hz |
| Air Cooling Jet | Yes |
| PC Board | Yes |
| Dimension (L*W*H) | 1000*2000*2800 mm |
| Cooling Power | 28.01 kW/hr |
| Air Volume | 10000 m²/h |
| Compressor Power | 7.5 kW |
| Fan Power | 0.9 kW |
| Compressor Type | Enclosed scroll air compressor |
| Coolant | R22 |
| Evaporator | Copper tube & aluminum fin /RVCES |
| Condenser | Steel tube & corrugated aluminum fin /HECT |
| Fan | Centrifugal with lower noise |
| Throttling | Extremal equalizer style thermal expansion valve |
| Electrical Control | Touch screen +PLC(Chinese+ English) |
| Weight | 350 kg |
| Dimension (L*W*H) | 1330*725*1330 mm |
We are a rubber machinery manufacturer. We primarily manufacture equipment such as rubber preformer machines, ram extruders, rubber blank manufacturing equipment, rubber strainers, rubber cooling conveyor systems, and more.
Our cooling conveyor system offers space-saving solutions for cooling and separating hot rubber blanks, preforms, granules, and rubber extrusions.
We offer spiral cooling conveyors and water bath cooling conveyors.
The rubber cooling conveyor is suitable for the rubber processing industry, including rubber products manufacturing and rubber component production, among others.
Yes, we provide a default 12-month warranty service, and even after the warranty period, we continue to offer discounted technical support and provide Rubber Machine Parts.
Our company has extensive experience in the design, research, manufacturing, sales, and after-sales service of rubber processing equipment. We provide comprehensive solutions for rubber product manufacturers. To date, rubber product manufacturers from various countries such as Brazil, Thailand, India, the United States, Russia, and South Korea have purchased our rubber equipment and provided positive feedback.
